Do you enjoy long walks on the beach, sunsets and the smell of the sea air?  If you do then this project is a perfect match for you.

This is the first in a series of 3 sea and ocean themed projects.  All  have been inspired by what you might see in the shallow pools of water you find while walking along the beach.  Things like seashells, starfish, smooth rocks and driftwood give you a glimpse of what you might encounter on the seafloor.  Using the wavy tile and seafloor texture, included in this project, you can create some interesting wall art, cottage signs, coffee tables and even a headboard that will surely keep you dreaming of the surf.

We have designed a pile of neat features into this project that will make it even easier to use and re-use.  These features include:
- Wavy tile that accepts V-Carving or even the addition of raised text.
- Wavy tile can be tiled end to end to make a longer layout and models can be tucked up under the raised border to create a more interesting project.
- Wavy tile has a flat bottom so it can accept almost any model and will also let you get the most "Z" depth out of the added model.
- Merge seafloor texture into the wavy tile to give it a seafloor look.
- Driftwood stick has raised bits that you can tuck models underneath.

When you put that seashell to your ear do you hear the sounds of the sea or your CNC working?!


Get yourself officially Weekend CNC Warrior Approved... you know you deserve it!

Post your finished project in the Vectric User Forum under Vector Art 3D / Design and Make It - Gallery or Email us an image of a project you made that uses one of our projects and a short description (try to include software used, the CNC ,finishing process and a social link... don't forget your name).

When it gets posted we will be sure to let you know!!!!

We are in the process of launching a
new Design and Make shopping experience.  Please click the button below to view this project in our new Project Shop.

Hack this Project!

Under the Sea No.1 - Hack 1.jpg

The "Seaside Inn" sign was made using the models from the following projects:

The font used for simulating V-Carving is called - Andalus

WOW... that's a hack worth making!

The Under the Sea No.1 project contains the following models and project sheet.

To get you started on your next weekend project we have included this assembled layout.

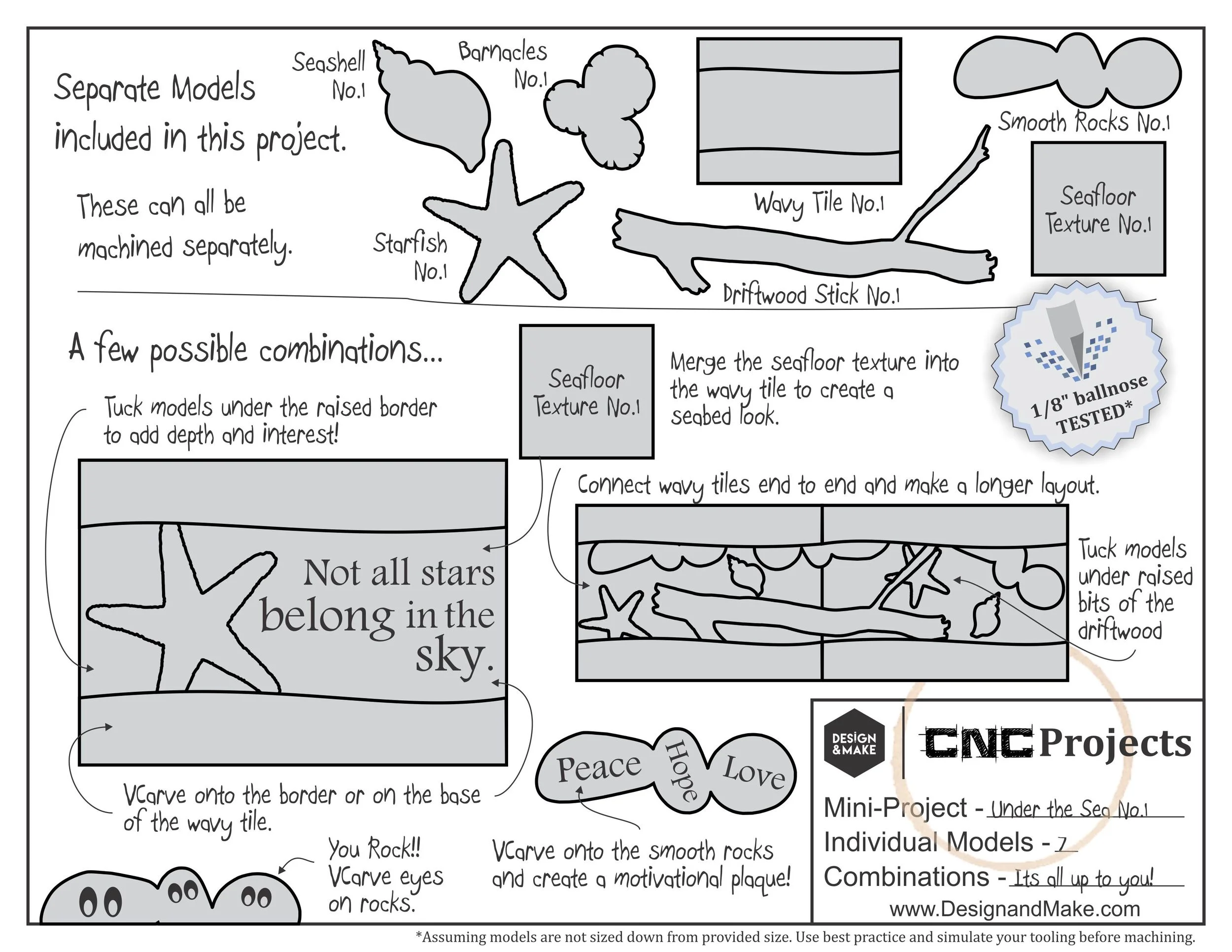

Project Sheet - Click to enlarge.

Food for thought.
Ideas for other combinations of this project.

In case you need...

The vector outlines for all of the models in this project you can download them from this link:

DXF - Outlines

In case you wanted to know...

Font used in the renderings is called -

  • Segoe Print
  • Andalus

Font used in the Project Sheet for this project is called -

  • Andalus

Thanks Weekend CNC Warriors for these project images!

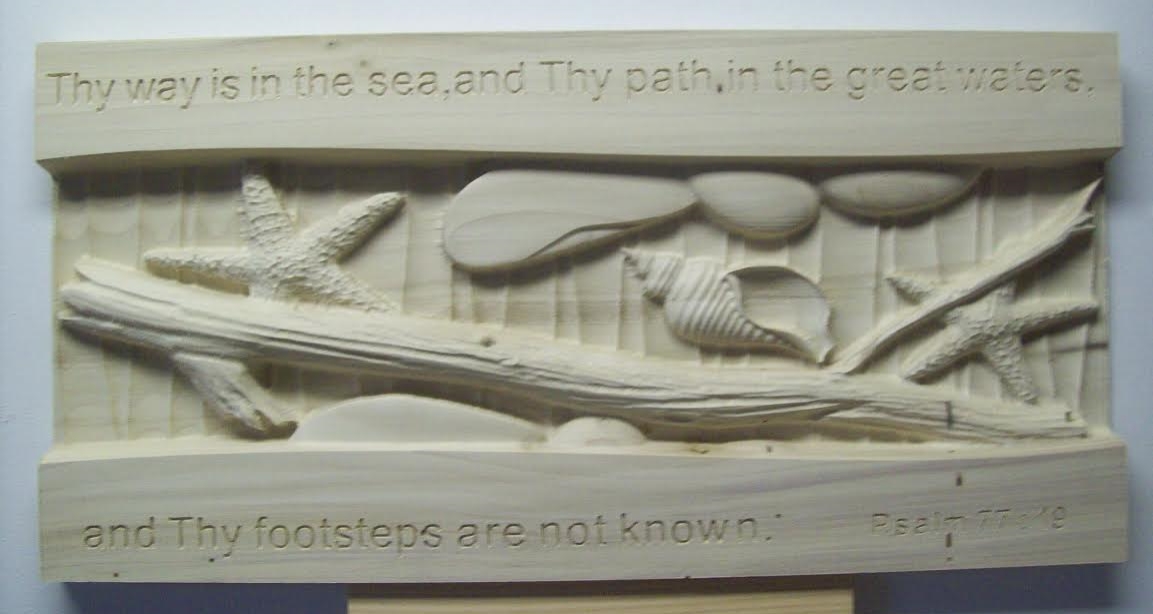

Weekend CNC Warrior, Don Harding, sent in these "work in progress" pictures of his Under the Sea project.  He used the included Assembled Layout and in the end added in some V-Carving to make a very unique gift!

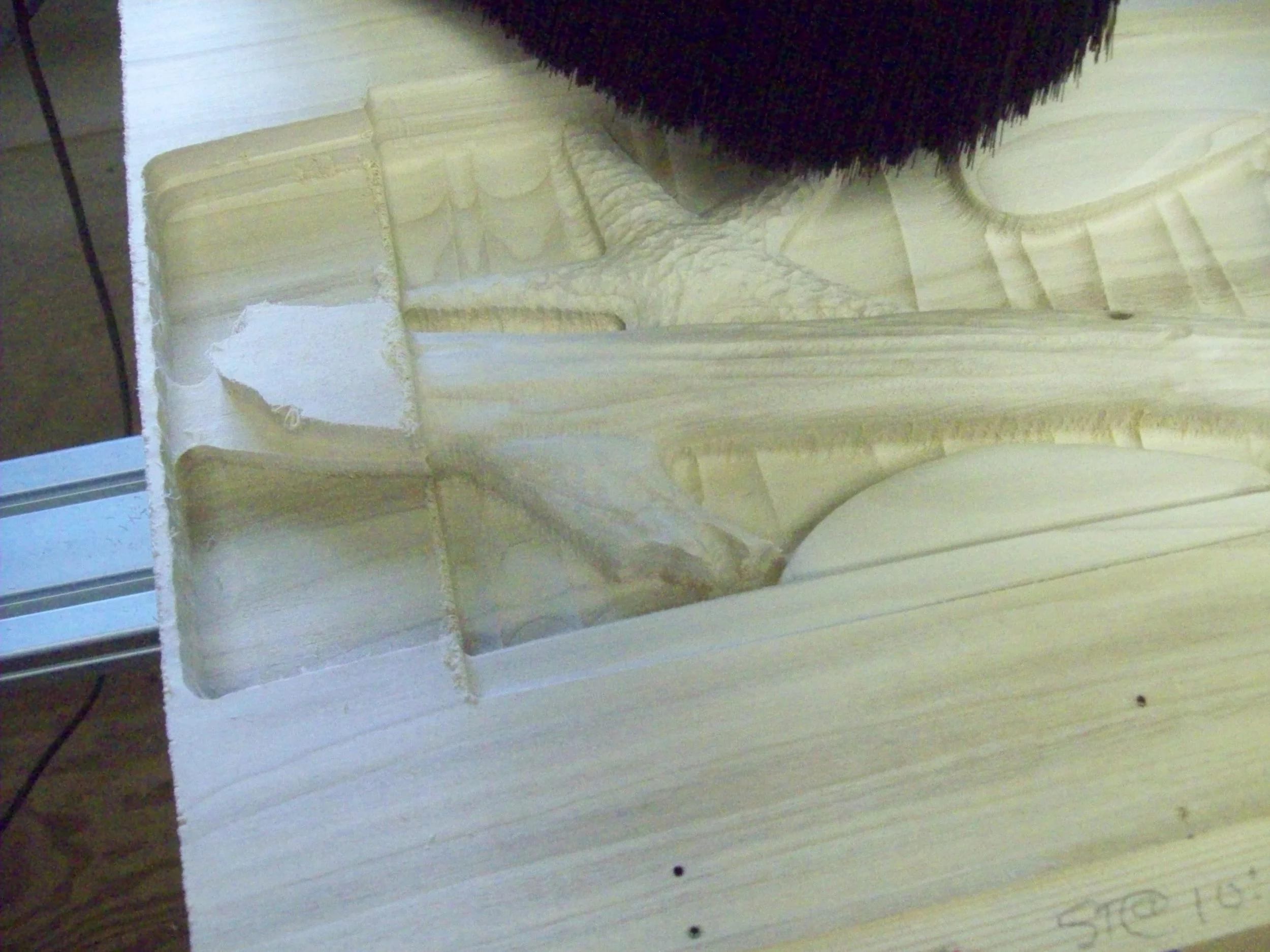

Don's Arty CNC running the finishing pass.

Finishing pass almost complete.

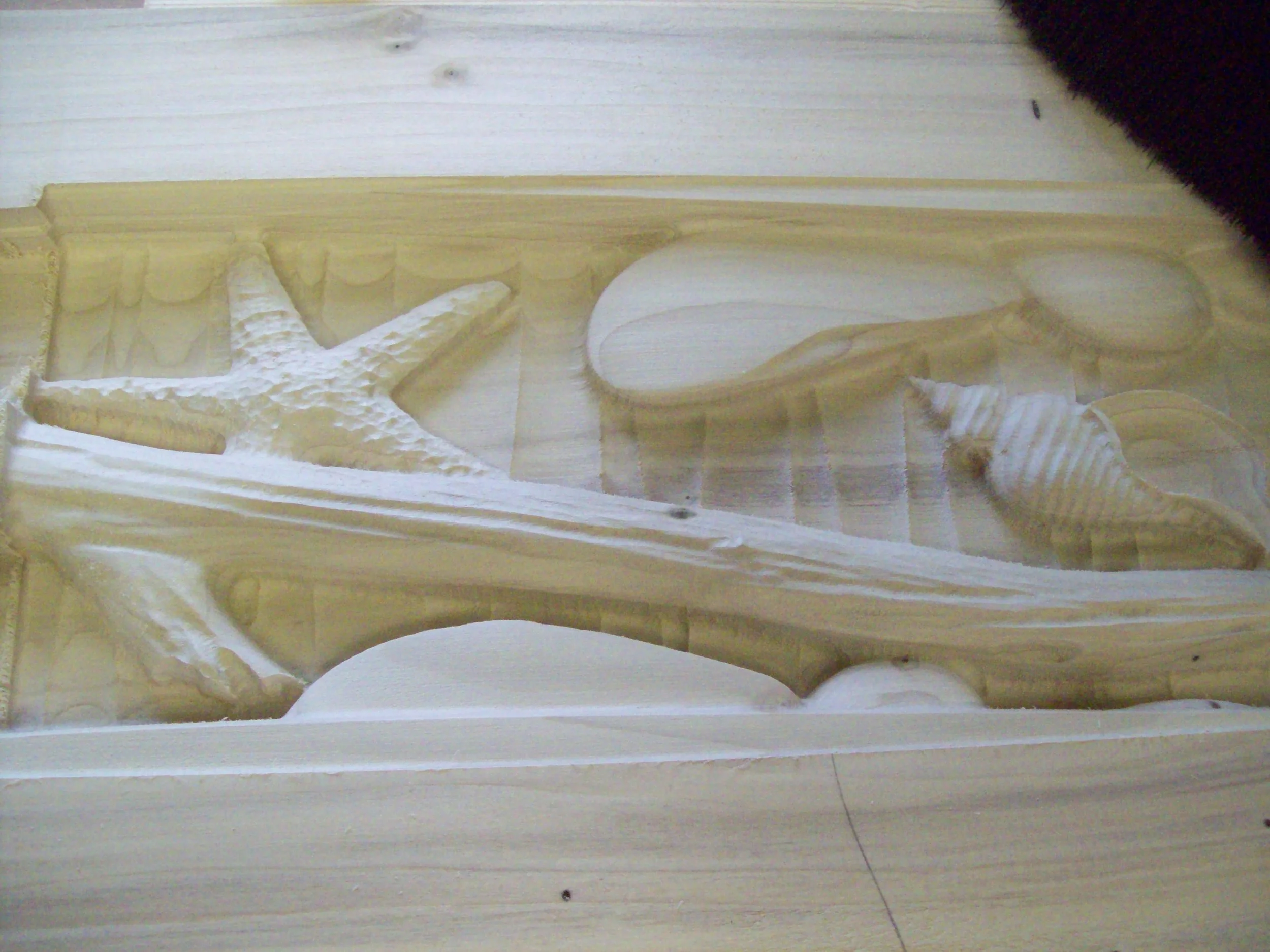

Close-up of his Under the Sea project.

All finished on the CNC, now it time to clean it up and put a finish on it!

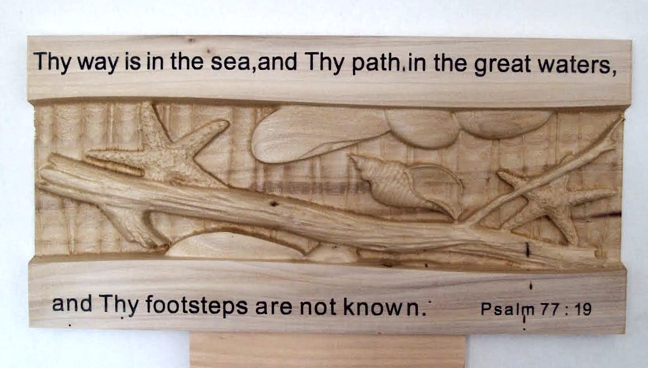

Letters blackened and ready for painting!

Thanks Tony for this great pic!!!!

Thanks John!!!  What a great idea!

Thank you Jim Meadows for this great Hack!

Share an image of a finished project that uses one of our models and get it posted here! WOW!!!!

Email us!

This project was created for all of you that enjoy long walks on the beach!
